基于MODIS数据的中国耕地高中低产田空间分布格局

doi:10.11821/dlxb201505008

Abstract

Abstract:

With the population increase and food consumption upgrade in China, the issue of food self-sufficiency attracts much attention from both Chinese government and international society. Under the circumstances of inadequate cropland resources supply and plenty of cropland occupied by urban construction, improving the utilization efficiency of arable land resources and increasing the cropland productivity have become the fundamental strategies of agricultural development in China. Since 1988, cropland improvement projects (medium-yield and low-yield field improvement and high-standard cropland construction) have been launched and implemented on a large scale, therefore a spatially explicit map for the distribution of high-, medium- and low-yield cropland was essential for cropland improvement planning. In this study, a new method for recognizing high-, medium- and low-yield field is developed based on cropland productivity, which is calculated by using a light use efficiency model and MODIS data with a 500-m resolution. This method can not only reflect the regional heterogeneity of cropland condition, but also express the spatial differences on a grid scale. At the same time, it effectively overcomes the shortage of statistical data based method in a county unit. The results show that the proportion of high-yield, medium-yield and low-yield cropland in China is 20.66%, 39.56% and 39.78%, respectively. About 3/4 of low-yield cropland is located in the hilly and mountainous regions, while 53% of the high-yield cropland is located in plain area. The five provinces with the largest area of high-yield cropland are Henan, Shandong, Jiangsu, Hebei and Anhui, which are all located in the Huang-Huai-Hai region. The sum of the high-yield cropland area in these five provinces accounts for 41.75% of the national total high-yield cropland area. In Heilongjiang province, Sichuan province and Inner Mongolia autonomous region, where the cropland area ranks the top three of China, the proportion of high-yield cropland area in each province only accounts for not more than 15%.

Key words: food security, light use efficiency model, cropland productivity, high-yield, medium-yield and low-yield cropland

Yongzan JI, Huimin YAN, Jiyuan LIU, Wenhui KUANG, Yunfeng HU. A MODIS data derived spatial distribution of high-, medium- and low-yield cropland in China[J].Acta Geographica Sinica, 2015, 70(5): 766-778.

Figures/Tables 8

Fig. 1

Fig. 2

Tab. 1

NPP range of effective grids in each farming area and criteria for the classification of high,medium and low yield cropland (gC/m2/a)

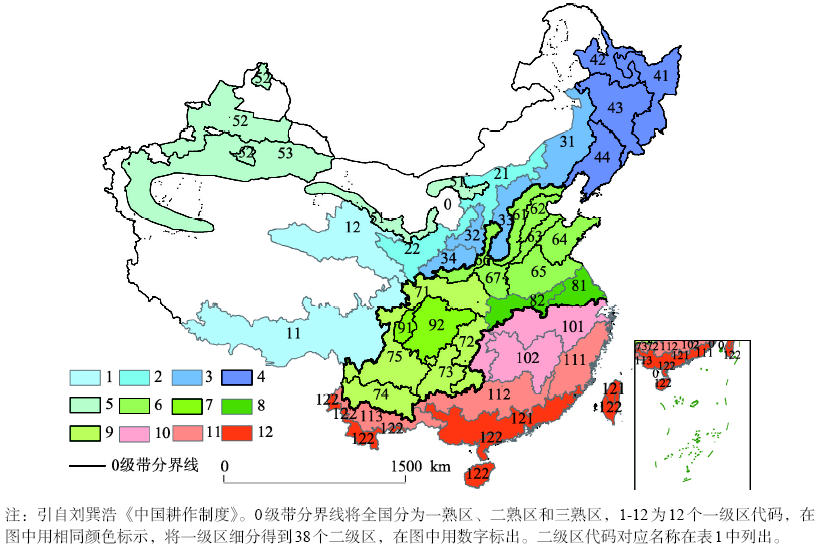

序号	二级区代码及名称	NPP_a	NPP_b	NPP_dif	低产田上限	高产田下限	提升潜力
1	11-藏东南川西谷地喜凉作物一熟区	192	800	608	374	587	213
2	12-海北甘南高原喜凉作物一熟轮歇区	275	750	475	418	584	166
3	21-后山坝上晋北高原山地半干旱喜凉作物一熟区	370	700	330	469	585	116
4	22-陇中青东宁中南黄土丘陵半干旱喜凉作物一熟区	250	800	550	415	608	193
5	31-辽吉西蒙东南冀北半干旱喜温一熟区	430	850	420	556	703	147
6	32-黄土高原东部易旱喜温一熟区	380	650	270	461	556	95
7	33-晋东半湿润易旱一熟填闲区	380	800	420	506	653	147
8	34-渭北陇东半湿润易旱冬麦一熟填闲区	437	900	463	576	738	162
9	41-大小兴安岭山麓岗地凉温作物一熟区	500	820	320	596	708	112
10	42-三江平原长白山地温凉作物一熟区	500	850	350	605	728	123
11	43-松嫩平原喜温作物一熟区	500	780	280	584	682	98
12	44-辽河平原丘陵温暖作物一熟填闲区	510	783	273	592	687	96
13	51-河套、河西灌溉一熟填闲区	300	1000	700	510	755	245
14	52-北疆灌溉一熟填闲区	450	1200	750	675	938	263
15	53-南疆、东疆绿洲二熟一熟区	400	1100	700	610	855	245
16	61-燕山太行山山前平原水浇地套复二熟旱地一熟区	430	950	520	586	768	182
17	62-黑龙港缺水低平原水浇二熟旱地一熟区	450	875	425	578	726	149
18	63-鲁西北豫北低平原水浇地粮二熟棉一熟区	550	970	420	676	823	147
19	64-山东丘陵水浇地二熟旱坡地花生棉花一熟区	450	900	450	585	743	158
20	65-黄淮平原南阳盆地旱地水浇地两熟区	600	1000	400	720	860	140
21	66-汾渭谷地水浇地二熟旱地一熟二熟区	400	900	500	550	725	175
22	67-豫西丘陵山地旱坡地一熟水浇地二熟区	550	850	300	640	745	105
23	71-秦巴山区旱地二熟一熟兼水田二熟区	650	1100	450	785	943	158
24	72-川鄂湘黔低高原山地水田旱地二熟兼一熟区	550	900	350	655	778	123
25	73-贵州高原水田旱地二熟一熟区	520	820	300	610	715	105
26	74-云南高原水田旱地二熟一熟区	500	1300	800	740	1020	280
27	75-滇黔边境高原山地河谷旱地一熟二熟水田二熟区	500	1000	500	650	825	175
28	81-江淮平原麦稻两熟兼旱三熟区	450	1000	550	615	808	193
29	82-鄂豫皖丘陵平原水田旱地两熟兼早三熟区	600	950	350	705	828	123
30	91-盆西平原水田麦稻两熟填闲区	550	820	270	631	726	95
31	92-盆东丘陵低山水田旱地两熟三熟区	570	930	360	678	804	126
32	101-沿江平原丘陵水田早三熟二熟区	400	1000	600	580	790	210
33	102-两湖平原丘陵水田中三熟二熟区	600	1000	400	720	860	140
34	111-浙闽丘陵山地水田旱地三熟二熟区	500	1250	750	725	988	263
35	112-南岭丘陵山地水田旱地三熟二熟区	600	1000	400	720	860	140
36	113-滇南山地旱地水田二熟兼三熟区	600	1400	800	840	1120	280
37	121-华南低平原晚三熟区	450	1200	750	675	938	263
38	122-华南沿海西双版纳台南二熟三熟与热作区	550	1500	950	835	1168	333

Tab. 1

Fig. 3

Fig. 4

Fig. 5

Tab. 2

Fig. 6

References 31

[1]	Foley J A, Ramankutty N, Brauman K A, et al.Solutions for a cultivated planet. Nature, 2011, 478(7369): 337-342.
[2]	Food and Agriculture Organization of the United Nations (FAOSTAT).aspx#ancor (accessed, March 2011.
[3]	Ramankutty N, Evan A T, Monfreda C, et al.Farming the planet: 1. Geographic distribution of global agricultural lands in the year 2000. Global Biogeochemical Cycles, 2008, 22(1).
[4]	Foley J A, DeFries R, Asner , et al. Global consequences of land use. Science, 2005, 309(5734): 570-574.
[5]	Tilman D, Balzer C, Hill J, et al.Global food demand and the sustainable intensification of agriculture. Proceedings of the National Academy of Sciences, 2011, 108(50): 20260-20264.
[6]	Seufert V, Ramankutty N, Foley J A.Comparing the yields of organic and conventional agriculture. Nature, 2012, 485(7397): 229-232.
[7]	Godfray H C J, Beddington J R, Crute I R, et al. Food security: The challenge of feeding 9 billion people. Science, 2010, 327(5967): 812-818.
[8]	Robertson G P, Swinton S M.Reconciling agricultural productivity and environmental integrity: A grand challenge for agriculture. Frontiers in Ecology and the Environment, 2005, 3(1): 38-46.
[9]	Cassman K G, Dobermann A, Walters D T, et al.Meeting cereal demand while protecting natural resources and improving environmental quality. Annual Review of Environment and Resources, 2003, 28(1): 315-358.
[10]	Shi Quanhong, Wang Hong, Chen Fu, et al.The spatial-temporal distribution characteristics and yield potential of medium-low yielded farmland in China. Chinese Agricultural Science Bulletin, 2010, 26(19): 369-373.
	[石全红, 王宏, 陈阜等. 中国中低产田时空分布特征及增产潜力分析. 中国农学通报, 2010, 26(19): 369-373.]
[11]	Zhang Lin, Zhang Fengrong, Jiang Guanghui, et al.Potential improvement of medium-low yielded farmland and guarantee of food safety in China. Research of Agricultural Modernization, 2005, 26(1): 22-25.
	[张琳, 张凤荣, 姜广辉等. 我国中低产田改造的粮食增产潜力与食物安全保障. 农业现代化研究, 2005, 26(1): 22-25.]
[12]	Wu Bingfang, Du Xin, Meng Jihua, et al.A remote sensing method to classify high, medium and low yield cropland and its application in Huang-Huai-Hai Basin//Modern Agricultural Development and National Food Security & Huang-Huai-Hai Modern Agricultural Development Strategy Forum Proceedings, 2009: 104-108.
	[吴炳方, 杜鑫, 蒙继华, 等.高中低产田遥感监测方法及在黄淮海流域的应用//现代农业发展与国家粮食安全暨黄淮海现代农业发展战略高峰论坛论文集, 2009: 104-108.]
[13]	Lin Pengsheng.Study on the distribution and possible production increment of medium and low-yield farmland in China [D]. Beijing: Chinese Academy of Agricultural Sciences, 2008.
	[林鹏生. 我国中低产田分布及增产潜力研究[D]. 北京: 中国农业科学院, 2008.]
[14]	Li Folin, Li Benxun, Cao Weixing.Status and prospect of crop-yield assess by remote sensing. Journal of Yunnan Agricultural University, 2005, 20(5): 680-684.
	[李佛琳, 李本逊, 曹卫星. 作物遥感估产的现状及其展望. 云南农业大学学报, 2005, 20(5): 680-684.]
[15]	Liu Wenchao, Yan Changzhen, Qin Yuanwei, et al.Cropland dynamics and its influence on the productivity in recent 20 years in northern Shaanxi, China. Journal of Natural Resources, 2013, 28(8): 1373-1382.
	[刘文超, 颜长珍, 秦元伟等. 近20a陕北地区耕地变化及其对农田生产力的影响. 自然资源学报, 2013, 28(8): 1373-1382.]
[16]	Yan Huimin, Liu Jiyuan, Huang Heqing, et al.Impacts of cropland transformation on agricultural production under urbanization and Grain for Green Project in China. Acta Geographica Sinica, 2012, 67(5): 579-588.
	[闫慧敏, 刘纪远, 黄河清, 等. 城市化和退耕还林草对中国耕地生产力的影响. 地理学报, 2012, 67(5): 579-588.]
[17]	Huang Mei, Ji Jinjun, Peng Lili.The response of vegetation net primary productivity to climate change during 1981-2000 in the Tibetan Plateau. Climatic and Environmental Research, 2008, 13(5): 608-616.
	[黄玫, 季劲钧, 彭莉莉. 青藏高原1981-2000年植被净初级生产力对气候变化的响应. 气候与环境研究, 2008, 13(5): 608-616.]
[18]	Wang Yuan, Huang Mei, Wang Xiangrong.Impacts of land use and climate change on agricultural productivity in Shanghai. Acta Scientiae Circumstantiae, 2010, 30(3): 641-648.
	[王原, 黄玫, 王祥荣. 气候和土地利用变化对上海市农田生态系统净初级生产力的影响. 环境科学学报, 2010, 30(3): 641-648.]
[19]	Yan H M, Fu Y L, Xiao X M et al. Modeling gross primary productivity for winter wheat-maize double cropping system using MODIS time series and CO2 eddy flux tower data. Agriculture, Ecosystems & Environment, 2009, 129(4): 391-400.
[20]	Xiao X M, Hollinger D, Aber J, et al.Satellite-based modeling of gross primary production in an evergreen needleleaf forest. Remote Sensing of Environment, 2004, 89(4): 519-534.
[21]	Kalfas J L, Xiao X, Vanegas D X, et al.Modeling gross primary production of irrigated and rain-fed maize using MODIS imagery and CO2 flux tower data. Agricultural and Forest Meteorology, 2011, 151(12): 1514-1528.
[22]	Gifford R M.Whole plant respiration and photosynthesis of wheat under increased CO2 concentration and temperature: long-term vs. short-term distinctions for modelling. Global Change Biology, 1995, 1(6): 385-396.
[23]	Luo Y, Sims D A, Thomas R B, et al.Sensitivity of leaf photosynthesis to CO2 concentration is an invariant function for C3 plants: A test with experimental data and global applications. Global Biogeochemical Cycles, 1996, 10(2): 209-222.
[24]	Cheng W, Sims D A, Luo Y, et al.Photosynthesis, respiration, and net primary production of sunflower stands in ambient and elevated atmospheric CO2 concentrations. Global Change Biology, 2000, 6(8): 931-941.
[25]	Albrizio R, Steduto P.Photosynthesis, respiration and conservative carbon use efficiency of four field grown crops. Agricultural and Forest Meteorology, 2003, 116(1): 19-36.
[26]	Wang Z, Xiao X, Yan X.Modeling gross primary production of maize cropland and degraded grassland in northeastern China. Agric. For. Meteorol., 2010, 150(9): 1160-1167.
[27]	Liu Xunhao. Chinese Cropping System.Beijing: Agriculture Press, 1993: 12-15.
	[刘巽浩. 中国耕作制度. 北京: 农业出版社, 1993: 12-15.]
[28]	Li Wenmei, Qin Zhihao, Li Wenjuan, et al.Comparison and analysis of MODIS NDVI and MODIS EVI. Remote Sensing Information, 2010, (6): 73-78.
	[李文梅, 覃志豪, 李文娟, 等. MODIS NDVI与MODIS EVI的比较分析. 遥感信息, 2010, (6): 73-78.]
[29]	Liu Xinhua, Yang Qinke, Tang Guoan.Extraction and application of relief of China based on DEM and GIS method. Bulletin of Soil and Water Conservation, 2001, 21(1): 57-60.
	[刘新华, 杨勤科, 汤国安. 中国地形起伏度的提取及在水土流失定量评价中的应用. 水土保持通报, 2001, 21(1): 57-60.]
[30]	Zhang Wei, Li Ainong.Study on the optimal scale for calculating the relief amplitude in China based on DEM. Geography and Geo-Information Science, 2012, 28(4): 8-12.
	[张伟, 李爱农. 基于DEM的中国地形起伏度适宜计算尺度研究. 地理与地理信息科学, 2012, 28(4): 8-12.]
[31]	Agricultural Natural Resources and Agricultural Regional Planning Institute of Chinese Academy of Agricultural Sciences, National Soil and Fertilizer Station. Chinese Arable Land Resources and its Exploitation. Beijing: Surveying and Mapping Press, 1992: 15.
	[中国农业科学院农业自然资源和农业区划研究所, 农业部全国土壤肥料总站. 中国耕地资源及其开发利用. 北京: 测绘出版社, 1992: 15.]

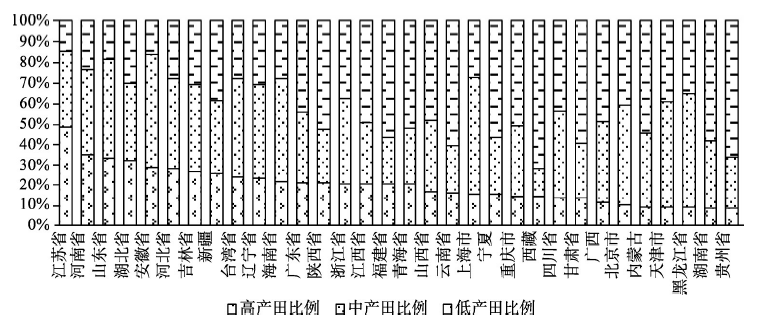

行政区	高产田面积	中产田面积	低产田面积	行政区	高产田面积	中产田面积	低产田面积
河南省	3.72	4.47	2.54	江西省	0.89	1.33	2.18
山东省	3.35	4.95	1.90	甘肃省	0.87	1.77	3.90
江苏省	3.25	2.51	1.00	广西	0.57	2.04	2.51
河北省	2.68	4.26	2.71	浙江省	0.56	1.16	1.04
安徽省	2.28	4.33	1.30	重庆市	0.55	1.32	1.97
湖北省	2.12	2.52	2.04	湖南省	0.50	2.00	3.51
吉林省	1.96	3.15	2.32	福建省	0.44	0.50	1.24
四川省	1.61	5.11	5.31	贵州省	0.42	1.25	3.30
新疆	1.48	2.09	2.30	宁夏	0.27	0.51	1.04
陕西省	1.48	1.89	3.79	海南省	0.18	0.44	0.25
辽宁省	1.46	2.94	1.96	青海省	0.16	0.22	0.43
黑龙江省	1.41	8.78	5.61	台湾省	0.15	0.31	0.18
云南省	1.07	1.61	4.17	上海市	0.07	0.25	0.12
内蒙古	1.03	4.06	6.16	西藏	0.06	0.07	0.33
山西省	0.99	2.16	2.95	天津市	0.06	0.35	0.27
广东省	0.90	1.50	1.94	北京市	0.05	0.23	0.20
