基于第二次冰川编目的中国冰川现状

doi:10.11821/dlxb201501001

Abstract

Abstract:

The Second Chinese Glacier Inventory (SCGI) was compiled based on remote sensing images after 2004 including Landsat TM/ETM+ and ASTER images, and the digital elevation models (DEMs) from SRTM. The SCGI shows that there are 48,571 glaciers with a total area of 5.18×10⁴ km² and ice volume of 4.3×10³-4.7×10³ km³ in China (including glaciers measured from 1:50,000 or 1:100,000 topographic maps made from the 1960s to the 1980s because of no high quality remote sensing images for the contemporary glacier inventories). The number of glaciers with the area below 0.5 km² reaches 33,061 and accounts for the majority part (66.07%) of glaciers in China. Glaciers with areas between 1.0 km² and 50.0 km² are totaled as ~3.40×10⁴ km² (~2.65×10³ km³ in ice volume) and constitute the main part of glaciers in China. The Yengisogat Glacier (359.05 km²), located in the Shaksgam Valley, north slope of the Karakoram Mountain, is the largest glacier in China. The glaciers are spatially distributed in 14 mountains and plateaus in western China. The Kunlun Mountains has the largest number of glaciers in China, followed by Tianshan Mountains, Nyainqêntanglha Range, the Himalayas and Karakoram. Glaciers in the above five mountains account for 72.26% of the total glacier number in China, however, over 55% of the total area of glaciers and 59% of the total ice storage in China are concentrated in the Kunlun Mountains, Nyainqêntanglha Range and Tianshan Mountains. The number and area of glaciers in Karakoram Mountains are less than those in the Himalayas, but the volume of the former is more than that of the latter because the glaciers in the Karakoram are generally larger. Some 4/5 of the total area of glaciers in China is mainly distributed in an altitudinal band between 4500-6500 m a.s.l. with regional differences depending on the general elevations of various mountains. Analogously, there is an obvious difference of glaciers in basins. The first level basin having the most glaciers is the East Asia interior drainage area (5Y) which occupies ~40% of glaciers in China. The Yellow River basin (5J) has the fewest glaciers where only 164 with an area of 126.72 km² are distributed. Xinjiang and Xizang autonomous regions are the two provincial units rich in glaciers, with ~9/10 of the total area and ice storage of glaciers in China.

Key words: glacier, inventory, area, spatial distribution, China

Shiyin LIU, Xiaojun YAO, Wanqin GUO, Junli XU, Donghui SHANGGUAN, Junfeng WEI, Weijia BAO, Lizong WU. The contemporary glaciers in China based on the Second Chinese Glacier Inventory[J].Acta Geographica Sinica, 2015, 70(1): 3-16.

Figures/Tables 10

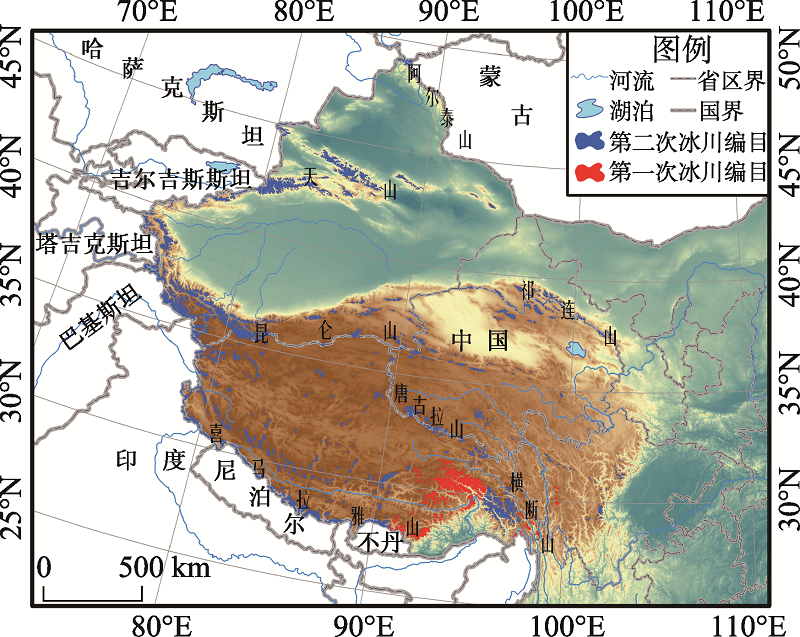

Fig. 1

Fig. 2

Tab. 1

Tab. 2

Fig. 3

Fig. 4

Tab. 3

Tab.4

Fig. 5

Tab. 5

References 46

[1]	Vaughan D G, Comiso J C, Allison I et al.Observations:Cryosphere//Stocker T F, Qin D, Plattner G K et al. Climate Change 2013: The Physical Science Basis. Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change. Cambridge: Cambridge University Press, 2013.
[2]	Qin Dahe, Dong Wenjie, Luo Yong.Climate and Environment Change in China:2012 Part 1 Scientific Basis. Beijing: China Meteorological Press, 2012.
	[秦大河, 董文杰, 罗勇. 中国气候与环境演变: 2012 第一卷科学基础. 北京: 气象出版社, 2012.]
[3]	Bammer J L, Payne A J.Mass Balance of the Cryosphere: Observations and Modeling of Contemporary and Future Changes. New York: Cambridge University Press, 2004.
[4]	Grinsted A.An estimate of global glacier volume. The Cryosphere, 2013, 7: 141-151.
[5]	Oerlemans J.Quantifying global warming from the retreat of glaciers. Science, 1994, 26(5156): 243-245.
[6]	UNEP, WGMS.Global Glacier Changes: Facts and Figures. 2008.
[7]	Xie Zichu, Liu Chaohai.The Introduction of Glaciology. Shanghai: Shanghai Popular Science Press, 2010.
	[谢自楚, 刘潮海.冰川学导论. 上海: 上海科学普及出版社, 2010.]
[8]	Shi Yafeng, Liu Shiyin, Ye Baisheng et al. Concise Glacier Inventory of China. Shanghai: Shanghai Popular Science Press, 2008.
[9]	Wang Zongtai, Su Hongchao.Glaciers in the world and China: distribution and their significance as water resources. Journal of Glaciology and Geocryology, 2003, 25(5): 198-502.
	[王宗太, 苏宏超. 世界和中国的冰川分布及其水资源意义. 冰川冻土, 2003, 25(5): 198-502.]
[10]	Liu Shiyin.Field Observations in Glaciological Research. Beijing: Science Press, 2012.
	[刘时银. 冰川观测与研究方法. 北京: 科学出版社, 2012.]
[11]	Sorg A, Bolch T, Stoffel M et al. Climate change impacts on glaciers and runoff in Tien Shan (Central Asia). Nature Climate Change, 2012. DOI: 10.1038/nclimate1592.
[12]	Yang Zhenniang.Glacier Water Resources in China. Lanzhou: Gansu Science and Technology Press, 1991.
	[杨针娘.中国冰川水资源. 兰州: 甘肃科学技术出版社, 1991.
[13]	Liu Chaohai, Kang Ersi, Liu Shiyin et al. Study on the glacier variation and its runoff responses in the arid region of northwest China. Science in China Series D, 1999, 29(S1): 55-62.
	[刘潮海, 康尔泗, 刘时银等. 西北干旱区冰川变化及其径流效应研究. 中国科学(D辑: 地球科学), 1999, 29(增刊1): 55-62.]
[14]	Shi Yafeng.Glaciers and Their Environments in China: The Present, Past and Future. Beijing: Science Press, 2000.
	[施雅风. 中国冰川与环境:现在、过去和未来. 北京 : 科学出版社, 2000.]
[15]	Zhang Jiutian, He Xiaojia, Shangguan Donghui et al. Impact of intensive glacier ablation on arid regions of northwest China and its countermeasure. Journal of Glaciology and Geocryology, 2012, 34(4): 848-854.
	[张九天, 何霄嘉, 上官冬辉等. 冰川加剧消融对我国西北干旱区的影响及其适应对策. 冰川冻土, 2012, 34(4): 848-854.]
[16]	Qin Dahe.Climate and Environment Change in China: 2012 the Comprehensive Volume. Beijing: China Meteorological Press, 2012.
	[秦大河. 中国气候与环境演变:2012 综合卷. 北京: 气象出版社, 2012.]
[17]	Cogley G.No ice lost in the Karakoram. Nature Geoscience, 2012, 5: 305-306.
[18]	Gardelle J, Berthier E, Arnaud Y.Slight mass gain of Karakoram glaciers in the early twenty-first century. Nature Geoscience, 2012, 5: 322-325.
[19]	Ding Yongjian, Liu Shiyin, Li Jing et al. The retreat of glaciers in response to recent climate warming in western China. Annals of Glaciology, 2006, 43: 97-105.
[20]	Xiao Cunde, Liu Shiyin, Zhao Lin et al. Observed changes of cryosphere in China over the second half of the 20th century: An overview. Annals of Glaciology, 2007, 46(1): 382-390.
[21]	Li Zhongqin.Recent Study and Application of Tianshan Urumqi River Source Glacier No.1. Beijing: China Meteorological Press, 2011.
	[李忠勤. 天山乌鲁木齐河源1号冰川近期研究与应用. 北京: 气象出版社, 2011.]
[22]	Yao T, Thompson L, Yang W et al. Different glacier status with atmospheric circulations in Tibetan Plateau and surroundings. Nature Climate Change, 2012. doi: 10.1038/nclimate1580.
[23]	Li Baolin, Zhang Yichi, Zhou Chenghu.Remote sensing detection of glacier changes in Tianshan Mountains for the past 40 years. Journal of Geographical Sciences, 2004, 14(3): 296-302.
[24]	Zhang Huawei, Lu Anxin, Wang Lihong et al. Glacier change in the Shulenan Mountain monitored by remote sensing. Journal of Glaciology and Geocryology, 2011, 33(1): 8-13.
	[张华伟, 鲁安新, 王丽红等. 祁连山疏勒南山地区冰川变化的遥感研究. 冰川冻土, 2011, 33(1): 8-13.]
[25]	Cao Bo, Pan Baotian, Gao Hongshan et al. Glacier variation in the Lenglongling range of eastern Qilian Mountains from 1972 to 2007. Journal of Glaciology and Geocryology, 2010, 32(2): 242-248.
	[曹泊, 潘保田, 高红山等. 1972-2007年祁连山东段冷龙岭现代冰川变化研究. 冰川冻土, 2010, 32(2): 242-248.]
[26]	Shangguan Donghui, Liu Shiyin, Ding Yongjian.Monitoring glacier changes and inventory of glaciers in Muztag Ata-Kongur Tagh, China using ASTER data. Journal of Glaciology and Geocryology, 2005, 27(3): 344-351.
	[上官冬辉, 刘时银, 丁永建. 利用ASTER影像对慕士塔格—公格尔山冰川解译与目录编制. 冰川冻土, 2005, 27(3): 344-351.]
[27]	Li Chengxiu, Yang Taibao, Tian Hongzhen.Variation of west Kunlun Mountains glacier during 1990-2011. Progress in Geography, 2013, 32(4): 548-559.
	[李成秀, 杨太保, 田洪阵. 1990-2011年西昆仑峰区冰川变化的遥感监测. 地理科学进展, 2013, 32(4): 548-559.]
[28]	Liu Shiyin, Ding Yongjian, Zhang Yong et al. Impact of the glacial change on water resources in the Tarim River Basin. Acta Geographica Sinica, 2006, 61(5): 482-490.
	[刘时银, 丁永建, 张勇等. 塔里木河流域冰川变化及其对水资源影响. 地理学报, 2006, 61(5): 482-490.]
[29]	Shangguan Donghui, Liu Shiyin, Ding Liangfu et al. Variation of glaciers in the western Nyainqentanglha range of Tibetan Plateau during 1970-2000. Journal of Glaciology and Geocryology, 2008, 30(2): 204-210.
	[上官冬辉, 刘时银, 丁良福等. 1970-2000年念青唐古拉山脉西段冰川变化. 冰川冻土, 2008, 30(2): 204-210.]
[30]	Bolch T, Yao T, Kang S et al. A glacier inventory for the western Nyainqentanglha Range and the Nam Co Basin, Tibet, and glacier changes 1976-2009. The Cryosphere, 2010, 4: 419-433.
[31]	Bolch T, Kulkarni A, Kääb A et al. The state and fate of Himalayan glaciers. Science, 2012, 336(6079): 310-314.
[32]	Zhang Guoliang, Pan Baotian,Wang Jie et al. Research on the glacier change in the Gongga Mountain based on remote-sensing and GPS from 1966 to 2008. Journal of Glaciology and Geocryology, 2010, 32(3): 454-460.
	[张国梁, 潘保田, 王杰等. 基于遥感和GPS的贡嘎山地区1966-2008年现代冰川变化研究. 冰川冻土, 2010, 32(3): 454-460.]
[33]	Yao Xiaojun, Liu Shiyin, Guo Wanqin et al. Glacier change of Altay Mountain in China from 1960 to 2009: Based on the Second Glacier Inventory of China. Journal of Natural Resources, 2012, 27(10): 1734-1745.
	[姚晓军, 刘时银, 郭万钦等. 近50a来中国阿尔泰山冰川变化: 基于中国第二次冰川编目成果. 自然资源学报, 2012, 27(10): 1734-1745.]
[34]	Wang Yuan, Wu Lizong, Xu Junli et al. Variation and uncertainty analysis of the glaciers in the past 50 years in Geladangdong of Tibetan Plateau. Journal of Glaciology and Geocryology, 2013, 35(2): 255-262.
	[王媛, 吴立宗, 许君利等. 1964-2010年青藏高原长江源各拉丹冬地区冰川变化及不确定性分析. 冰川冻土, 2013, 35(2): 255-262.
[35]	Lu Anxin, Yao Tandong, Liu Shiyin et al. Glacier change in the Geladandong area of the Tibetan Plateau monitored by remote sensing. Journal of Glaciology and Geocryology, 2002, 24(5): 559-562.
	[鲁安新, 姚檀栋, 刘时银等. 青藏高原各拉丹冬地区冰川变化的遥感监测. 冰川冻土, 2002, 24(5): 559-562.]
[36]	Liu Shiyin, Lu Anxin, Ding Yongjian et al. Glacier fluctuations and the inferred climate changes in the A'Nyêmaqên Mountains in the source area of the Yellow River. Journal of Glaciology and Geocryology, 2002, 24(6): 701-707.
	[刘时银, 鲁安新, 丁永建等. 黄河上游阿尼玛卿山区冰川波动与气候变化. 冰川冻土, 2002, 24(6): 701-707]
[37]	Yao Tandong, Liu Shiyin, Pu Jianchen et al. Recent glacial retreats in High-Asia in China and its impact on water resources in Northwest China. Science in China: Series D, 2004, 34(6): 535-543.
	[姚檀栋, 刘时银, 蒲健辰等. 高亚洲冰川的近期退缩及其对西北水资源的影响. 中国科学D辑: 地球科学, 2004, 34(6): 535-543.]
[38]	Zhang Mingjun, Wang Shengjie,Li Zhongqin et al. Variation of glacier area in China against the warming in the past 50 years. Acta Geographica Sinica, 2011, 66(9): 1155-1165.
	[张明军, 王圣杰, 李忠勤等. 近50年气候变化背景下中国冰川面积状况分析. 地理学报, 2011, 66(9): 1155-1165.]
[39]	Paul F, Barry R G, Cogley J G et al. Recommendations for the compilation of glacier inventory data from digital sources. Annals of Glaciology, 2010, 50(53): 119-126.
[40]	Guo Wanqin, Liu Shiyin, Yu Pengchun et al. Automatic extraction of ridgelines using on drainage boundaries and aspect difference. Science of Surveying and Mapping, 2011, 36(6): 210-212.
	[郭万钦, 刘时银, 余蓬春等. 利用流域边界和坡向差自动提取山脊线. 测绘科学, 2011, 36(6): 210-212.]
[41]	Radić V, Hock R.Regional and global volumes of glaciers derived from statistical upscaling of glacier inventory data. Journal of Geophysical Research, 2010, 115: F01010, doi: 10.1029/2009JF001373.
[42]	Liu Shiyin, Sun Wenxin, Shen Yongping.Glacier changes since the little ice age maximum in the western Qilian Shan, northwest China, and consequences of glacier runoff for water supply. Journal of Glaciology, 2003, 49(164): 117-124.
[43]	Bolch T, Menounos B, Wheate R.Landsat-based inventory of glaciers in western Canada, 1985-2005. Remote Sensing of Environment, 2010, 114(1): 127-137.
[44]	Frey H, Paul F, Strozzi T.Compilation of a glacier inventory for the western Himalayas from satellite data: methods, challenges, and results. Remote Sensing of Environment, 2012, 124: 832-843.
[45]	Zhang Yili, Li Bingyuan, Zheng Du.A discussion on the boundary and area of the Tibetan Plateau in China. Geographical Research, 2002, 21(1): 1-10.
	[张镒锂, 李炳元, 郑度. 论青藏高原范围与面积. 地理研究, 2002, 21(1): 1-10.]
[46]	Li Bingyuan, Pan Baotian, Han Jiafu.Basic terrestrial geomorphological types in China and their circumscriptions. Quaternary Sciences, 2008, 28(4): 535-543.
	[李炳元, 潘保田, 韩嘉福. 中国陆地基本地貌类型及其划分指标探讨. 第四纪研究, 2008, 28(4): 535-543.]

规模等级 (km²)	数量			面积			冰储量
规模等级 (km²)	(条)		(%)		(km²)	(%)	(km³)	(%)
<0.1	12658	26.06		640.23	1.24		10.10±2.08	0.22
0.1~0.5	20403	42.01		4914.56	9.49		128.46±17.74	2.86
0.5~1.0	6491	13.36		4544.98	8.78		162.71±16.06	3.62
1.0~2.0	4328	8.91		6046.98	11.68		271.76±18.92	6.05
2.0~5.0	3007	6.19		9254.36	17.88		543.18±19.12	12.09
5.0~10.0	964	1.98		6628.44	12.80		504.77±1.04	11.23
10.0~20.0	441	0.91		6023.36	11.64		576.34±15.60	12.82
20.0~50.0	206	0.42		6068.23	11.72		755.19±45.76	16.80
50.0~100.0	51	0.11		3667.03	7.08		611.93±59.52	13.62
100.0~200.0	16	0.03		2299.30	4.44		485.38±61.43	10.80
200.0~300.0	4	0.01		961.31	1.86		239.83±35.23	5.34
≥300.0	2	0.00		717.30	1.39		204.35±33.33	4.55
总计	48571	100.00		51766.08	100.00		4494.00±175.93	100.00

序号	名称	面积 (km²)	所在山系	所在流域	所在省(区)
1	音苏盖提	359.05	喀喇昆仑山	塔里木河	新疆
2	托木尔	358.25	天山	塔里木河	新疆
3	土格别里齐	282.72	天山	塔里木河	新疆
4	中峰	237.46	昆仑山	班公湖	西藏
5	多峰	236.77	昆仑山	塔里木河	新疆
6	恰青	204.36	念青唐古拉山	雅鲁藏布江	西藏
7	昆仑	199.09	昆仑山	塔里木河	新疆
8	木斯塔	182.54	喀喇昆仑山	塔里木河	新疆
9	雅弄	179.59	念青唐古拉山	雅鲁藏布江	西藏
10	乌库尔	167.84	天山	塔里木河	新疆
11	夏曲	167.05	念青唐古拉山	雅鲁藏布江	西藏
12	崇测	166.08	昆仑山	班公湖	西藏
13	木扎尔特	165.83	天山	塔里木河	新疆
14	琼台兰	140.95	天山	塔里木河	新疆
15	玉龙	135.00	昆仑山	塔里木河	新疆
16	那龙	122.33	念青唐古拉山	雅鲁藏布江	西藏
17	西玉龙	120.51	昆仑山	塔里木河	新疆
18	克拉亚依拉克	115.16	帕米尔	塔里木河	新疆
19	古里雅	111.37	昆仑山	班公湖	西藏
20	特拉木坎力	110.40	喀喇昆仑山	塔里木河	新疆
21	弓形	108.18	昆仑山	班公湖	西藏
22	尕舍罗鲁姆	107.38	喀喇昆仑山	塔里木河	新疆

山系(高原)	数量			面积			冰储量
山系(高原)	(条)		(%)		(km²)	(%)	(km³)	(%)
阿尔泰山	273	0.56		178.79	0.35		10.50±0.21	0.23
穆斯套岭	12	0.02		8.96	0.02		0.40±0.03	0.01
天山	7934	16.33		7179.77	13.87		707.95±45.05	15.75
喀喇昆仑山	5316	10.94		5988.67	11.57		592.86±34.68	13.19
帕米尔高原	1612	3.32		2159.62	4.17		176.89±4.63	3.94
昆仑山	8922	18.37		11524.13	22.26		1106.34±56.60	24.62
阿尔金山	466	0.96		295.11	0.57		15.36±0.65	0.34
祁连山	2683	5.52		1597.81	3.09		84.48±3.13	1.88
唐古拉山	1595	3.28		1843.91	3.56		140.34±1.70	3.12
羌塘高原	1162	2.39		1917.74	3.70		157.29±3.11	3.50
冈底斯山	3703	7.62		1296.33	2.50		56.62±3.43	1.26
喜马拉雅山	6072	12.50		6820.98	13.18		533.16±8.71	11.87
念青唐古拉山	6860	14.12		9559.20	18.47		835.30±31.30	18.59
横断山	1961	4.04		1395.06	2.69		76.50±2.41	1.70
总计	48571	100.00		51766.08	100.00		4494.00±175.93	100.00

分区	一级流域(编码)	数量			面积			冰储量
分区	一级流域(编码)	(条)		(%)		(km²)	(%)	(km³)	(%)
内流区	中亚内流区(5X)	2122	4.37		1554.70	3.00		106.00±0.27	2.36
	东亚内流区(5Y)	20412	42.03		22414.58	43.30		2113.98±112.51	47.04
	青藏高原内流区(5Z)	6378	13.13		7273.30	14.05		662.06±27.78	14.73
	合计	28912	59.53		31242.58	60.35		2882.04±140.56	64.13
外流区	鄂毕河(5A)	279	0.57		186.12	0.36		10.84±0.23	0.24
	黄河(5J)	164	0.34	126.72		0.24	8.53±0.03		0.19
	长江(5K)	1528	3.15	1674.69		3.24	117.24±0.14		2.61
	湄公河(5L)	469	0.97	231.32		0.45	11.15±0.55		0.25
	萨尔温江(5N)	2177	4.48	1479.09		2.86	91.88±0.86		2.04
	恒河(5O)	12641	26.03	15718.65		30.36	1306.95±38.01		29.08
	印度河(5Q)	2401	4.94	1106.91		2.14	65.37±1.11		1.45
	合计	19659	40.47	20523.50		39.65	1611.96±35.37		35.87
总计		48571	100.00	51766.08		100.00	4494.00±175.93		100.00

省(区)	数量			面积			冰储量
省(区)	(条)		(%)		(km²)	(%)	(km³)	(%)
西藏	21863	45.01		23795.78	45.97		1984.78±61.22	44.17
新疆	20695	42.61		22623.82	43.70		2155.82±116.60	47.97
青海	3802	7.83		3935.81	7.60		274.74±0.32	6.11
甘肃	1538	3.17		801.10	1.55		39.90±1.76	0.89
四川	611	1.26		549.12	1.06		35.02±0.38	0.78
云南	62	0.13		60.45	0.12		3.74±0.07	0.08
总计	48571	100.00		51766.08	100.00		4494.00±175.93	100.00

The contemporary glaciers in China based on the Second Chinese Glacier Inventory
