上海市地下商业空间使用权估价及空间分异

doi:10.11821/dlxb201710005

摘要/Abstract

摘要：

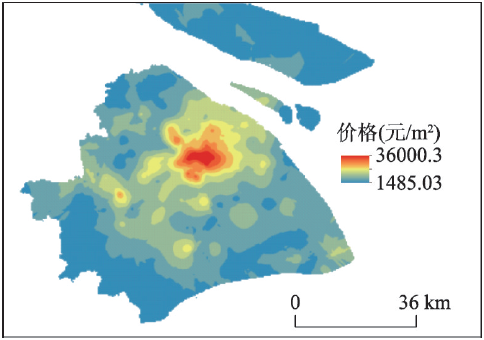

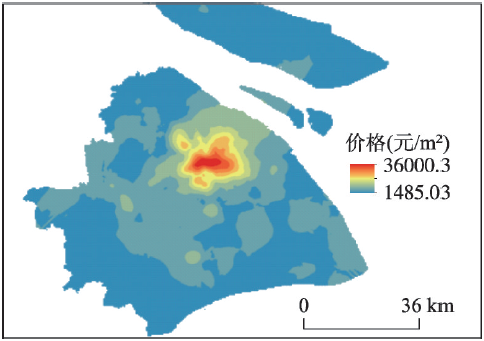

目前的土地估价不仅很少考虑地下空间价值,而且缺乏相对成熟的地下空间估价体系和方法。首先结合成本法、收益还原法及楼层效用比法,建立地下空间使用权价格评估模型。然后,分析了地下空间使用权价值的主要影响因素,发现区位、交通、商业经营等因素显著影响地下商业空间的效用;指出为了提高估价的准确性,地下商业空间效用应该分级、分类设置,而不能笼统地确定为同一水平,并据此测算出上海市地下空间使用权地价分配率。基于所构建的评估模型,以上海市地下商业空间为例,通过克里金内插法,廓清了上海市地下空间使用权价格的空间分布状况;最后,从典型购物中心、市级商业中心和全市商业用地成交地块三个维度,探讨上海市地下商业空间使用权价格的空间分异特征。结果表明：① 上海市地下空间使用权价格空间分布与地上土地使用权价格分布规律基本一致,并由市中心向郊区递减;② 地下商业空间使用权价格对地下轨道交通具有较强的依赖性;③ 与地上商业空间使用权价格分布相比,地下商业空间使用权价格分布的集聚性特征更明显。

关键词: 地下商业空间, 价格评估, 楼层效用比, 空间分异, 上海市

Abstract:

Current land appraisal techniques rarely consider the value of underground space and lack robust methods of evaluating underground space. This paper integrates the cost method, income reduction method and floor utility ratio method to establish a value assessment model of underground space use. Then, the major factors that influence the value of underground space use are analysed. We find that location, traffic and business type have significant influences on the utility of underground commercial space. Thus, to improve the accuracy of such valuations, the utility of underground commercial space should be graded and classified into different levels. The land price distribution of underground space use in Shanghai is analysed based on the assessment model and the Kriging interpolation method. Finally, the values of different features of the underground commercial space in Shanghai are discussed in three contexts: typical shopping centres, municipal commercial centres and commercial land transaction plots. The results show that (1) the price distribution of underground space use is consistent with that of the aboveground, and the price decreases from the city centre to the suburbs; (2) the price of the underground commercial space is highly dependent on underground rail traffic; and (3) the price distribution of underground commercial space use exhibits distinctly concentrated areas of high and low prices.

Key words: underground commercial space, land value assessment, utility ratios among floors, spatial variation, Shanghai

石忆邵, 周蕾. 上海市地下商业空间使用权估价及空间分异[J]. 地理学报, 2017, 72(10): 1787-1799.

Yishao SHI, Lei ZHOU. Land value assessment and spatial variation in underground commercial space in Shanghai[J]. Acta Geographica Sinica, 2017, 72(10): 1787-1799.

图/表 17

表1

表2

表3

表4

表5

图1

图2

表6

表7

表8

图3

图4

图5

图6

图7

图8

图9

参考文献 24

[1]	Joan Pasqual, Pere Riera.Underground land value. Land Use Policy, 2005, 22(4): 322-330. doi: 10.1016/j.landusepol.2004.03.005
[2]	He Qiaoyi, Cai Gengyang.Underground space utilization of small and intermediate cities: Shaoxing case. Planners, 2014, 30(1): 42-47. doi: 10.3969/j.issn.1006-0022.2014.01.008
	[贺俏毅, 蔡庚洋. 中小城市地下空间开发利用规划实践: 以浙江省绍兴县地下空间开发利用专项规划为例. 规划师, 2014, 30(1): 42-47.] doi: 10.3969/j.issn.1006-0022.2014.01.008
[3]	Yuan Hong, Zhao Wanmin, Zhao Shichen.Analysis of underground space planning system in Japan. Urban Development Studies, 2014, 21(2): 112-118. doi: 10.3969/j.issn.1006-3862.2014.02.018
	[袁红, 赵万民, 赵世晨. 日本地下空间利用规划体系解析. 城市发展研究, 2014, 21(2): 112-118.] doi: 10.3969/j.issn.1006-3862.2014.02.018
[4]	Jiang Fan, Zhang Yangfei.Practice and outlook on the development of underground space in Shanghai. Shanghai Urban Planning Review, 2011(2): 62-67.
	[江帆, 张仰斐. 上海市地下空间开发利用的实践与展望. 上海城市规划, 2011(2):62-67.]
[5]	Brownell K W.Valuation of pipeline easements. The Appraisal Journal, 1958, (4):279-285.
[6]	Rhodes R M.Air rights, subsurface easements, and other fractional interests. The Appraisal Journal, 1974(2): 261-269.
[7]	Partaker J E.Easement compensation for transmission line rights-of-way. Right of Way, 1982(4): 211-221.
[8]	Gela G, Dai J J.Calculation of thermal fields of underground cables using the boundary element method. IEEE Transactions on Power Delivery, 1988, (4): 1341-1347. doi: 10.1109/61.193929
[9]	Jones-Lee M, Loomes G.Towards a willingness-to-pay based value of underground safety. Journal of Transport Economics and Policy, 1994(1): 83-98. doi: 10.1007/BF01064084
[10]	Guntermann K L.Sanitary landfills, stigma, and industrial land values. Journal of Real Estate Research, 1995, (5): 531-542.
[11]	Jackson T O.The effect of previous environmental contamination on industrial real estate prices. The Appraisal Journal, 2001(2): 200-210. doi: 10.1093/icesjms/fsm165
[12]	Baen J S, Alavayay J R.Stratified free estate valuation and development of underground public projects. Australasian Journal of Property Research, 1990, (2): 134-138.
[13]	Bobylev N.Mainstreaming sustainable development into a city's master plan: A case of urban underground space use. Land Use Policy, 2009, 26(4): 1128-1137. doi: 10.1016/j.landusepol.2009.02.003
[14]	Zhou Y, Zhao J.Assessment and planning of underground space use in Singapore. Tunneling and Underground Space Technology, 2015(12): 10-17. doi: 10.1016/j.tust.2015.12.018
[15]	Ma Jinyue.Urban underground space and the planning for its development and utilization. Underground Space, 2002(22): 200-207.
	[马景月. 城市地下空间与开发利用规划. 地下空间, 2002(22): 200-207.]
[16]	Fan Wenli.The trend of underground space of modern city: Integrating subordinate underground space into city space. Urban Planning International, 2007(6): 53-58. doi: 10.3969/j.issn.1673-9493.2007.06.010
	[范文莉. 当代城市地下空间发展趋势: 从附属使用到城市地下、地上空间一体化. 国际城市规划, 2007(6): 53-58.] doi: 10.3969/j.issn.1673-9493.2007.06.010
[17]	Peng Fangle, Zhao Jingwei, Liu Kun, et al.Underground development control in CBD based on the regulatory plan: The case of Phase I of Shanghai Hongqiao CBD. Urban Planning Forum, 2013(1): 78-85.
	[彭芳乐, 赵景伟, 柳昆, 等. 基于控规层面下的CBD地下空间开发控制探讨. 城市规划学刊, 2013(1): 78-85.]
[18]	Yang Weihong.Study on land price appraisal of three-dimensional space and its demonstration: A case of commercial land in Nanjing [D]. Nanjing: Nanjing Agricultural University, 2010.
	[杨伟洪. 立体空间土地价格的评估及其实证研究: 以南京市商业用地为例[D]. 南京: 南京农业大学, 2010.]
[19]	Shen Ying.Research on land-use right definition and evaluation methods of urban underground space [D]. Hangzhou: Zhejiang University, 2010.
	[沈颖. 城市地下空间的使用权权属界定与估价方法研究[D]. 杭州: 浙江大学, 2010.]
[20]	Chen Jianxiang.Study on land-use right evaluation methods of urban underground space [D]. Shanghai: Fudan University, 2011.
	[陈建祥. 城市地下空间使用权估价方法研究[D]. 上海: 复旦大学, 2011.]
[21]	Zhao Li.Analysis and discussion on land-use right price of urban underground space in China. Chinese Journal of Underground Space and Engineering, 2015, 11(2): 284-292.
	[赵丽. 我国城市地下空间土地使用权价格分析与探讨. 地下空间与工程学报, 2015, 11(2): 284-292.]
[22]	Ma Qian, Sha Yili, Zhao Kaiyan, et al.Research on evaluation of the value of right to use the urban underground commercial land. Chinese Journal of Underground Space and Engineering, 2015, 11(1): 10-16.
	[马骞, 沙一粒, 赵恺彦, 等. 城市地下商业用地使用权价值评估研究. 地下空间与工程学报, 2015, 11(1): 10-16.]
[23]	Du Debin, Xu Jiangang.An analysis on location factors affecting the spatial distribution of Shanghai land value. Acta Geographica Sinica, 1997(5): 403-411. doi: 10.11821/xb199705003
	[杜德斌, 徐建刚. 影响上海市地价空间分布的区位因子分析. 地理学报, 1997(5): 403-411.] doi: 10.11821/xb199705003
[24]	Wu Yuzhe, Wu Cifang.A study on Kriging-based urban base and standard land value assessment: Taking Hangzhou city as a case. Economic Geography, 2001, 21(5): 584-588. doi: 10.3969/j.issn.1000-8462.2001.05.016
	[吴宇哲, 吴次芳. 基于Kriging技术的城市基准地价评估研究. 经济地理, 2001, 21(5): 584-588.] doi: 10.3969/j.issn.1000-8462.2001.05.016

楼层	每层楼的年均租金A(元/m²)	每层楼的估值P (元/m²)	建设成本C (元/m²)	楼层的土地使用权单价V(元/m²)	地价楼层效用比
9层	1080	13707.23	1500	6871	0.08
8层	1440	18276.31	1500	9662	0.12
7层	1440	18276.31	1500	9662	0.12
6层	1800	22845.39	1500	12452	0.15
5层	2880	36552.62	1500	20823	0.25
4层	5040	63967.08	1500	37566	0.46
3层	6930	87954.73	1500	52215	0.64
2层	9306	118110.64	1500	70632	0.86
1层	10800	137072.31	1500	82212	1.00
地下1层	6840	86812.46	2500	50518	0.61

楼层	恒隆广场	港汇广场	百联又一城	环球港
9层	-	-	0.08	-
8层	-	-	0.12	-
7层	-	-	0.12	-
6层	-	0.23	0.15	-
5层	0.17	0.27	0.25	-
4层	0.26	0.39	0.46	0.38
3层	0.35	0.49	0.63	0.64
2层	0.56	0.72	0.80	0.69
1层	1.00	1.00	1.00	1.00
地下1层	0.47	0.64	0.61	0.56
地下2层	-	-	-	0.46

区位条件	恒隆广场	港汇广场	百联又一城	环球港
距离市中心距离(km)	2.1	5.5	8.1	6.2
距市级商业中心距离(km)	0	0	0	1.8
土地等级	一级	一级	三级	四级

比较因素	恒隆广场	港汇广场	百联又一城	环球港
区位条件的分值	4	3.67	2.33	1.33
地下一层楼层效用率	0.47	0.64	0.61	0.56
地下一层楼层效用值(元/m²)	19800	15120	6840	4320

比较因素	恒隆广场	港汇广场	百联又一城	环球港
地下一层楼层效用比	0.47	0.64	0.61	0.56
是否有地铁导入地下	否	是	是	是
周边公交站点数量	>10	>10	>10	5~10
是否临近主干道	是	是	是	是
