基于行为视角的北京城市交通空间结构

doi:10.11821/dlxb201512011

摘要/Abstract

摘要：

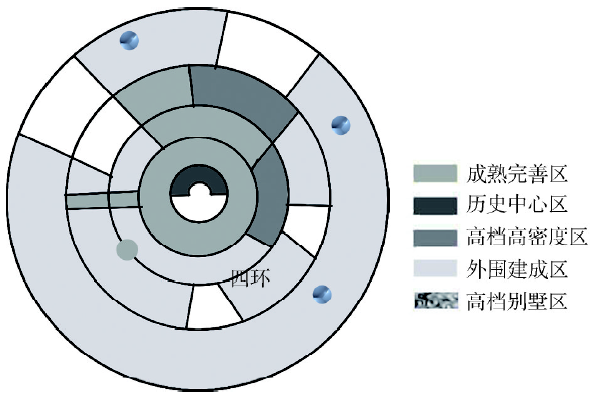

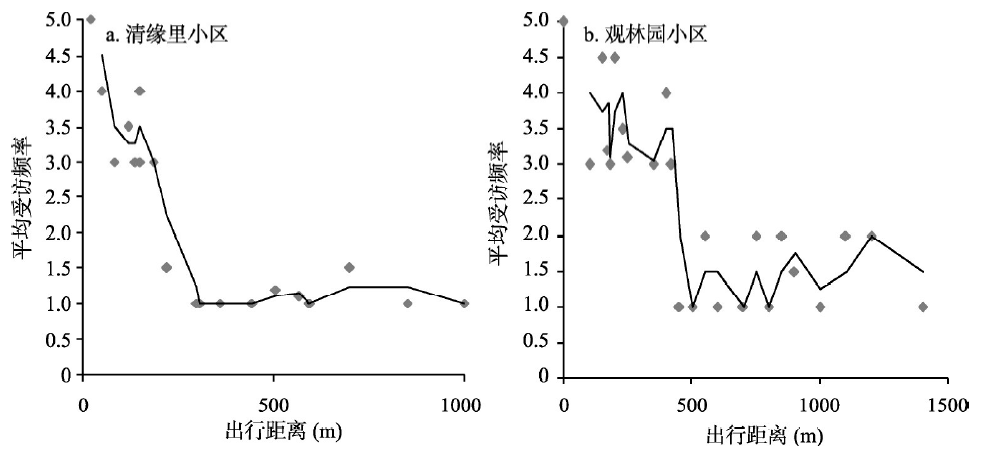

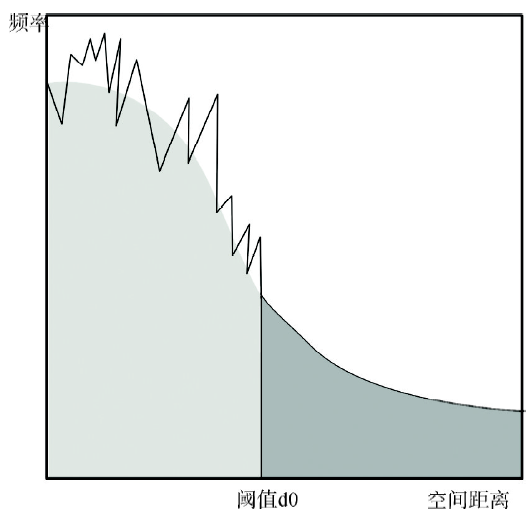

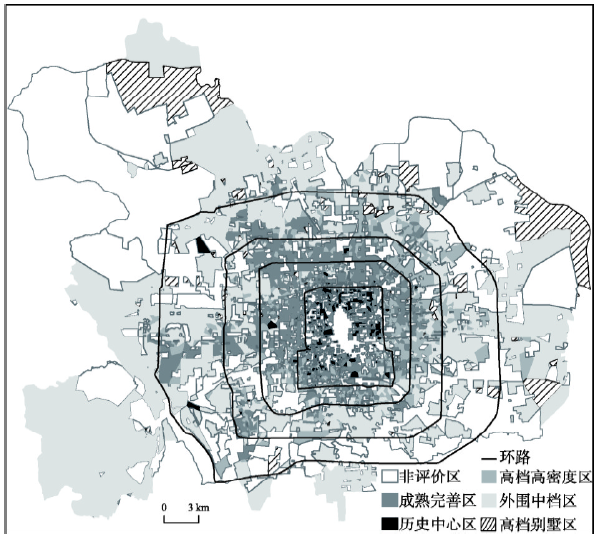

从行为的视角研究城市交通空间结构已成为地理学和交通规划关注的热点问题,但却面临微观研究的偶然性和典型性等局限,难以对城市交通空间结构进行全面的解析。本文提出了利用交通行为区来反映居民交通行为与地理环境耦合关系的思路,为解决城市微观研究中的不确定性问题提供了视角,同时建立起从典型抽样到面域覆盖的评价方法。本文假设居民的交通行为随着空间尺度的变动存在着逐步收敛的规律性。在此假设下,在北京市外围永泰居住区进行了出行调研实验,证实了居民出行行为的这一规律性,并得出居住小区的二手房价、建成年代、规划特征、公共交通服务水平等环境变量成为行为区划分的关键指标。在此基础上,以北京市城六区范围内搜集的居住小区为基本单元,参照环境变量的空间聚类结果,划分了5种典型的行为区类型,分别是：高档别墅区,中档建成区,历史中心区,高档高密度区,成熟完善区。5种行为区内主导的居民群体、居民的出行模式均具有明显的差异性。交通行为区的划分方法对于精细化研究城市交通空间结构具有重要意义,例如交通资源的差异化配置,低碳交通空间结构研究等。

关键词: 行为区, 出行行为, 实体环境, 城市交通, 北京

Abstract:

It is commonly agreed that the preference or behavior of people ought to be examined within specific geographical contexts. Because of the existence of uncertain geographic context problem, the way for defining the areal unit of geographic context may significantly affect the behavioral pattern. It is thus essential to select an appropriate spatial scale for analyzing the characteristics of transportation activities in cities. The concept of behavior zone (BZ) is proposed based on homogeneous assumption of behaviors to analyze an area-based pattern of people's travel behaviors in the whole city. Behavior zone is identified through spatial analysis of residents' daily travel behaviors with respect to the environments. With a daily travel survey conducted in Beijing's sample residential areas, the critical indices for identifying different types of behavior zones are revealed, including second-hand housing price, development intensity, population density, accessibility to public transportation. With these indices, the residential areas all over the central districts of Beijing are clustered by five representative behavior zone types: luxury villa, suburban, traditional, high-density, and mature areas. The population characters and behavior features, such as dominant income groups, average commuting distance, and share of commuting travel mode, differed obviously from community to community. These results provide great implications for fine transportation resources allocation since behavior zones are areas where the modal choice behaviors of inhabitants are projected. Besides, behavior zones are critically important to data transformation in terms of their area-based features.

Key words: behavior zone, travel behaviors, geographic context, urban transportation, Beijing

季珏, 高晓路. 基于行为视角的北京城市交通空间结构[J]. 地理学报, 2015, 70(12): 2001-2010.

Jue JI, Xiaolu GAO. Study on urban transportation structure based on residents' travel behaviors in Beijing[J]. Acta Geographica Sinica, 2015, 70(12): 2001-2010.

图/表 11

图1

图2

表1

图3

表2

表3

图4

图5

表4

表5

表6

参考文献 23

[1]	Alford G, Whiteman J.Macro-urban form and transport energy outcomes: Investigations for Melbourne. Road & Transport Research, 2009, 18(1): 53-67. doi: 10.1243/09544097JRRT226
[2]	Dieleman F M, Dijst M, Burghouwt G.Urban form and travel behavior: Micro-level household attributes and residential context. Urban Studies, 2002, 39: 507-527.
[3]	Horner M W.A multi-scale analysis of urban form and commuting change in a small metropolitan area (1990-2000). Annals of Regional Science, 2007, 41(2): 315-332. doi: 10.1007/s00168-006-0098-y
[4]	Hankey S, Marshall J D.Impact of urban form on future US passenger-vehicle greenhouse gas emissions. Energy Policy, 2009, 7(5): 1-8.
[5]	Kitamura R, Fujii S, Kikuchi A, et al.An application of a micro-simulator of daily travel and dynamic network flow to evaluate the effectiveness of selected TDM measures for CO2 emissions reduction. In: Proceedings of the 77th Annual Meeting of the Transportation Research Board, Washington, DC, 1998.
[6]	Long Ying, Mao Qizhi, Yang Dongfeng, et al.A multi-agent model for urban form, transportation energy consumption and environmental impact integrated simulation. Acta Geographica Sinica, 2011, 66(8): 1033-1044.
	[龙瀛, 毛其智, 杨东峰, 等. 城市形态、交通能耗和环境影响集成的多智能体模型. 地理学报, 2011, 66(8): 1033-1044.]
[7]	Chai Yaiwei, Shen Yue, Ta Na, et al.Review for space-time behavior research: Theory frontiers and application in the future. Progress in Geography, 2012, 31(6): 667-675. doi: 10.11820/dlkxjz.2012.06.001
	[柴彦威, 申悦, 塔娜, 等. 时空间行为研究动态及其实践应用前景. 地理科学进展, 2012, 31(6): 667-675.] doi: 10.11820/dlkxjz.2012.06.001
[8]	Harding C, Patterson Z, Miranda-Moreno L F, et al. Modeling the effect of land use on activity spaces. Transportation research record. Journal of the Transportation Research Board, 2012, 2323: 67-74. doi: 10.3141/2323-08
[9]	Zahabi A, Miranda M L, Patterson Z P, et al.Urban transportation greenhouse gas emissions and its link with urban form, transit accessibility and emerging green technologies: A Montreal case study. Transportation Research Record: Journal of the Transportation Research Board, 2013, 2375: 45-54.
[10]	Darbani J, Rezaei A, Patterson Z, et al. Traditional text-only SP survey of neighborhood choice. Paper presented in session 786 of the 93rd Annual Meeting of the Transportation Research Board, January2013. Washington, DC.
[11]	Pan Haixiao, Shen Qing, Zhang Ming.Influence of urban form on travel behavior in four neighborhoods of Shanghai. Urban Studies, 2009, 46(2): 275-294.
[12]	Wang Donggen, Chai Yaiwei, Li Fei.Built environment diversities and activity-travel behavior variations in Beijing, China. Journal of Transport Geography, 2011, 19(6): 1173-1186. doi: 10.1016/j.jtrangeo.2011.03.008
[13]	Chai Yaiwei.Methodological problems in behavioral geography study. Areal Research and Development, 2005, 24(2): 1-5. doi: 10.3969/j.issn.1003-2363.2005.02.001
	[柴彦威. 行为地理学研究的方法论问题. 地域研究与开发, 2005, 24(2): 1-5.] doi: 10.3969/j.issn.1003-2363.2005.02.001
[14]	Chai Yaiwei, Xiao Zuopeng, Liu Zhilin.Comparative analysis on CO2 emission per household in daily travel based on spatial behavior constraints. Scientia Geographica Sinica, 2011, 31(7): 843-849.
	[柴彦威, 肖作鹏, 刘志林. 基于空间行为约束的北京市居民家庭日常出行碳排放的比较分析. 地理科学, 2011, 31(7): 843-849.]
[15]	Kwan M P.Human space-time behavior as the basis of dynamic conceptualizations of geographic context. Paper presented on the 7th Workshop on Spatial Behavior and Planning Research, Beijing, 2012.
[16]	Shevky E, Williams M.The Social Areas of Los Angeles. Los Angeles: University of California Press, 1949.
[17]	Gu Chaolin, Wang Fahui, Liu Guili.Study on urban social areas in Beijing. Acta Geographica Sinica, 2003, 58(6): 917-926. doi: 10.3321/j.issn:0375-5444.2003.06.015
	[顾朝林, 王法辉, 刘贵利. 北京城市社会区分析. 地理学报, 2003, 58(6): 917-926.] doi: 10.3321/j.issn:0375-5444.2003.06.015
[18]	Zhou Chunshan, Liu Yang, Zhu Hong.Analysis on social areas of Guangzhou city during the economic system transformation. Acta Geographica Sinica, 2006, 61(10): 1046-1056. doi: 10.3321/j.issn:0375-5444.2006.10.004
	[周春山, 刘洋, 朱红. 转型时期广州市社会区分析. 地理学报, 2006, 61(10): 1046-1056.] doi: 10.3321/j.issn:0375-5444.2006.10.004
[19]	Li Shuangchen, Cai Yunlong.Some scaling issues of Geography. Geographical Research, 2005, 24(1): 11-18. doi: 10.3321/j.issn:1000-0585.2005.01.002
	[李双成, 蔡云龙. 地理尺度转换若干问题的初步探讨. 地理研究, 2005, 24(1): 11-18.] doi: 10.3321/j.issn:1000-0585.2005.01.002
[20]	Gao Xiaolu, Ji Jue, Wang Fang.Spatial pattern of transportation carbon emission based on behavior zones: Evidence from Beijing, China. International Review for Spatial Planning and Sustainable Development, 2013, 1(2): 3-14. doi: 10.14246/irspsd.1.2_3
[21]	Ji Jue, Gao Xiaolu.Identifying the scope of daily life in urban areas based on residents' travel behaviors. Progress in Geography, 2012, 31(2): 248-254. doi: 10.11820/dlkxjz.2012.02.014
	[季珏, 高晓路. 基于居民日常出行的生活空间单元的划分. 地理科学进展, 2012, 31(2): 248-254.] doi: 10.11820/dlkxjz.2012.02.014
[22]	Chen Li, Zhang Wenzhong, Dang Yunxiao, et al.The spatial distribution, transition and residential pattern of low-income residents in Beijing. Geographical Research, 2012, 31(4): 720-732. doi: 10.11821/yj2012040014
	[谌丽, 张文忠, 党云晓, 等. 北京市低收入人群的居住空间分布、演变与聚居类型. 地理研究, 2012, 31(4): 720-732.] doi: 10.11821/yj2012040014
[23]	Ma Jing, Chai Yanwei, Liu Zhilin.The mechanism of CO2 emissions from urban transport based on individuals' travel behavior in Beijing. Acta Geographica Sinica, 2011, 66(8): 1023-1032.
	[马静, 柴彦威, 刘志林. 基于居民出行行为的北京市交通碳排放影响机理. 地理学报, 2011, 66(8): 1023-1032.]

出行频率 (次/天)	交通方式占比
出行频率 (次/天)	步行(%)	自行车(%)	公交车(%)
4	10.3	3.4	0.0
3	38.2	17.2	0.0
2	47.1	72.4	0.0
1及以下	4.4	6.9	100.0
合计	100.0	100.0	100.0

环境变量	指标	备注	平均值	最小值	最大值	比例(%)
二手房价	平均房价(元/m²)	2012年7月	30365	7825	63230
开发特征	FAR		2.9	0.2	30
	物业管理费(元/m²)		2.0	0	20
	房龄(年)	2012年为止	13	1	63
公共交通服务	800 m范围内公交站点数		5.7	0	39
公共交通服务	1 km内地铁站点数		1.5	0	10
居住类型	传统历史居住区	胡同、四合院等老城区住房				4.6
	单位大院	原职住一体化的小区				2.6
	普通商品房	约1990年后建造的住房				90.4
	公共政策房	改善中低收入者住房问题的公共住房				0.5
	别墅等	高档别墅				1.9

类别	房屋主导类型	小区比例(%)	800 m内公交站点个数	1 km内地铁站点数	FAR	物业管理费(元/m²·月)	二手房价(万元/m²)	建成时间 (年)
高档别墅BZ	高档别墅	2.4	7.9	0.4	0.8	3.7	3.6	8.1
中档建成区BZ	商品房	37.5	6.9	0.2	1.0	0.9	2.4	13.0
历史中心BZ	胡同、四合院	5.4	25.6	1.8	0.6	0.2	4.9	14.7
高档高密度BZ	商品房	21.9	17.7	0.7	3.7	3.2	3.2	9.6
成熟完善BZ	商品房	32.8	20.9	1.2	1.0	0.5	3.2	17.3

家庭收入 (元/月)	高档别墅BZ	城市外围BZ	历史中心区BZ	高档高密度BZ	成熟完善BZ
≤ 3000	0.00	17.86	82.27	27.53	54.14
3000~7000	12.00	53.64	16.57	54.08	38.36
7000~10000	52.00	13.25	0.00	12.25	6.16
>10000	36.00	15.23	1.18	6.12	1.37
合计	100	100	100	100	100

交通方式	高档别墅BZ	中档建成区BZ	历史中心区BZ	高档高密度BZ	成熟完善BZ	平均值
步行	3.0	11.7	7.8	12.1	16.6	13
自行车	1.0	9.7	30.2	21.0	21.5	17
地铁	10.0	16.8	4.0	10.2	9.4	12
小汽车	80.0	29.3	5.1	15.4	10.8	20
公共汽车	5.0	30.3	47.0	38.3	38.2	35
其他	1.0	2.2	5.9	3.1	3.6	3
